INS_CNGE3FE7MS4_REV– Rev. 4.30.14 PAGE 78

INSTALLATION AND OPERATION MANUAL CNGE3FE7MS4

TECH SUPPORT: 1.888.678.9427

Command Line Interface Management

About CLI Management

Besides WEB-base management, CNGE3FE7MS4 also supports CLI management. You can use

console or telnet to management switch by CLI.

CLI Management by RS-232 Serial Console (9600, 8, none, 1, none)

Before Configuring by the RS-232 serial console, use an RJ45 to DB9-F cable to connect the

Switch’s RS-232 Console port to your PCs’ COM port.

Follow the steps below to access the console via RS-232 serial cable.

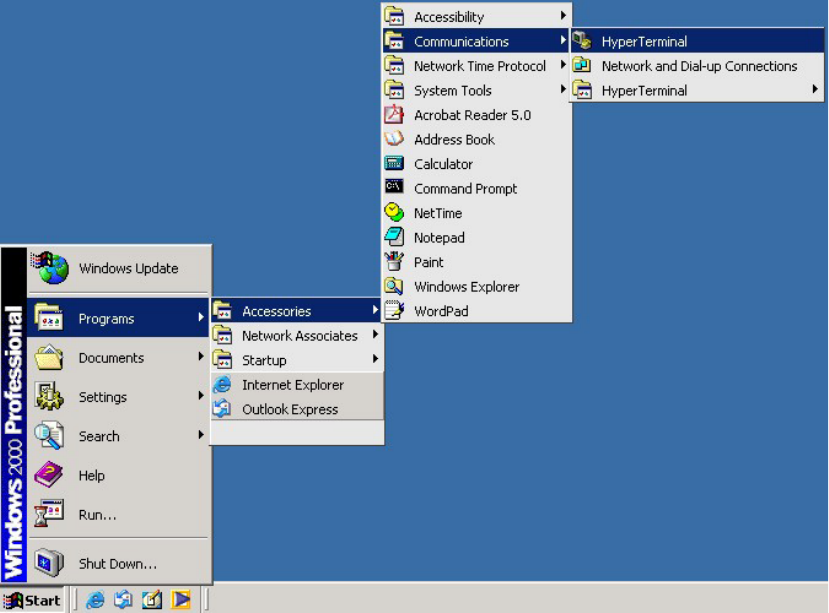

Step 1. From the Windows desktop, select on Start -> Programs -> Accessories ->

Communications -> Hyper Terminal
